Single seated bellows control valves

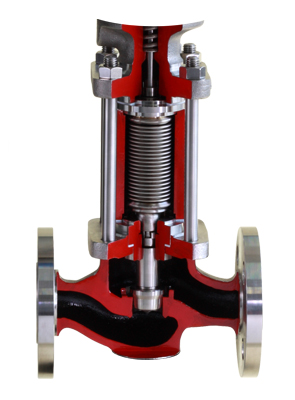

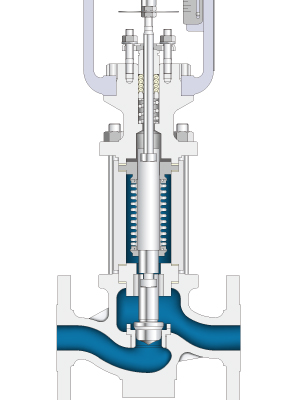

This control valve has a structure equipped with an external pressure type bellows.
The seal perfomance is superior to that of a general gland structure.
Therefore, the control valve is applicable to controlling toxic fluid and vacuum service.
The seal perfomance is superior to that of a general gland structure.
Therefore, the control valve is applicable to controlling toxic fluid and vacuum service.
●Standard specifications
| Model number | T-8115 |
|---|---|
| Model name | Single seated bellows control valves |
| Press.rating | JIS 10K～63K、ASME/ANSI 150～1500 |
| End connection | Flanged ends RF |
| Nominal size（A） | 15～300 |
| Rated Cv | 0.01～1440（On-off：0.4～1600） |
| Body materials | SCPH2、SCS13A、SCS14A |
| Trim materials | SUS316、SUS630 |
| Bellows materials | SUS316 |
| Packing materials | PTFE-V Packing,Graphite |
| Gasket materials | PTFE,Expanded graphite |
| Flow chracteristics | Equal percentage（Range-abillity 50：1）,Linear,Quick opening（On-off） |
| The choice of actuator | Diaphragm motor：T-5 series,Air cylinder Electronic type：MSP/PSN series,Electromotive type：CMS series |
| Option | Range-ability 100：1 Steam jacekts,Specially packing Trim materials：SUS304L,SUS316L Trim shape：PTFE disk Trim treatment：Stellite End connection：Socket weld end,Butt weld end,Others |
●Delivery list of fluid names
98% sulfuric acid／Nitrogen oxide（Nox）／Argon gas／Ammonia gas／Liquefaction sulfite／Liquefied ammonia／Liquefied hydrogen chloride／Liquid chlorine／Liquefied hydrogen bromide／Liquefied phosgene／Hydrogen chloride gas／Titanium chloride／Chloride Mechirugasu／Chlorine gas／Hydrogen peroxide solution／Caustic soda／Metallic sodium／Air／Phosphorus pentafluoride／Sugarcane・molasses／Boron trichloride／Phosphorus trichloride／Ethylene oxide／Propylene oxide／Chlorine trifluoride／Nitrogen trifluoride／Hydrogen cyanide／Titanium tetrachloride／Dichlorosilane／Dichlorohexane／Vegetable oil／Cooking oil／Hydrogen gas／Trichlorosilane／Trimethylamine gas／Chlorine dioxide／Thermal oil／Perfluorocyclobutane／Waste gas／Carbonyl fluoride／Hydrofluoric acid／Hydrofluoric acid gas／Fluorine gas／Chlorofluorocarbon／Hexafluoro-cyclopropane／Helium gas／Methanol／Silicon tetrachloride／Silicon tetrafluoride／Hydrogen sulfide／Tungsten hexafluoride／
Many other
